Dahua - Managing Device Capacity

If your NVR or IP camera is running slowly, generating excessive events, or consuming storage faster than expected, the settings in this guide can help. The recommendations below cover snapshot management, event configuration, disarm scheduling, and auto-maintenance — each of which can have a significant impact on device performance.

Before You Begin The recommendations in this guide may not apply to every installation. Review each setting against your required features and test thoroughly before rolling out changes across all channels or devices.

Tested Firmware Versions These settings were verified on the following firmware versions. Minor differences may exist on newer builds, but functionality remains the same.

NVR DHI-NVR5208-8P-EI — V4.005.0000000.3.R (Build: 2025-01-21)
IPC DH-IPC-HDW3849H-AS-PV — V3.140.00DM003.0.R (Build: 2025-03-13)
IPC IPC-HDW3541TM-AS — V2.800.10EX001.0.R (Build: 2025-04-08)

1. Snapshot Settings

1.1 Snapshot Storage Schedule

Certain events — such as IVS — require snapshots to be stored on the NVR in order to display results in AI search logs.

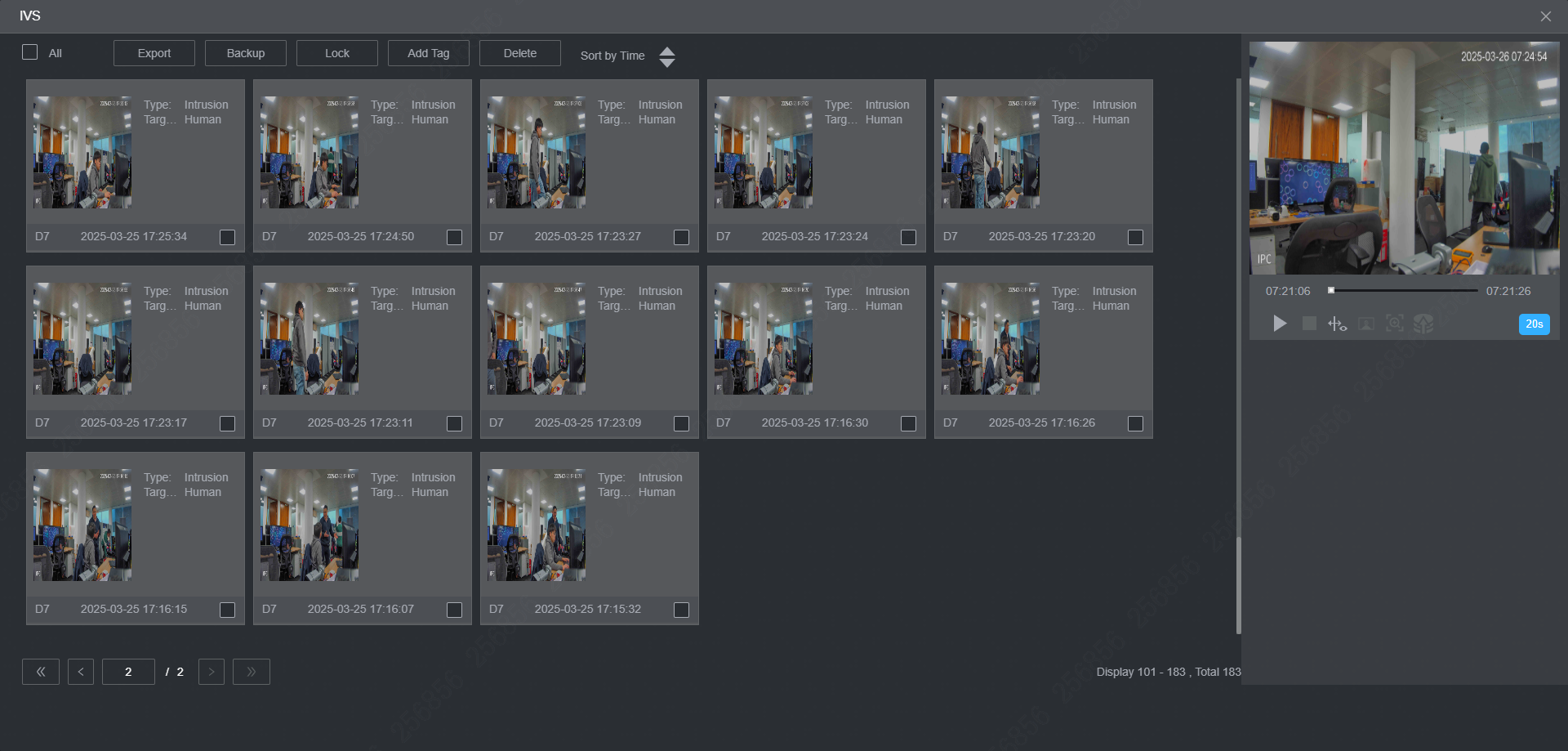

IVS AI Search page — requires stored snapshots to populate event logs.

Where AI search functionality is required, enable the Snapshot Storage Schedule for both General and event types (such as Intelligent) across all channels. This ensures the NVR receives images from cameras and can log events correctly.

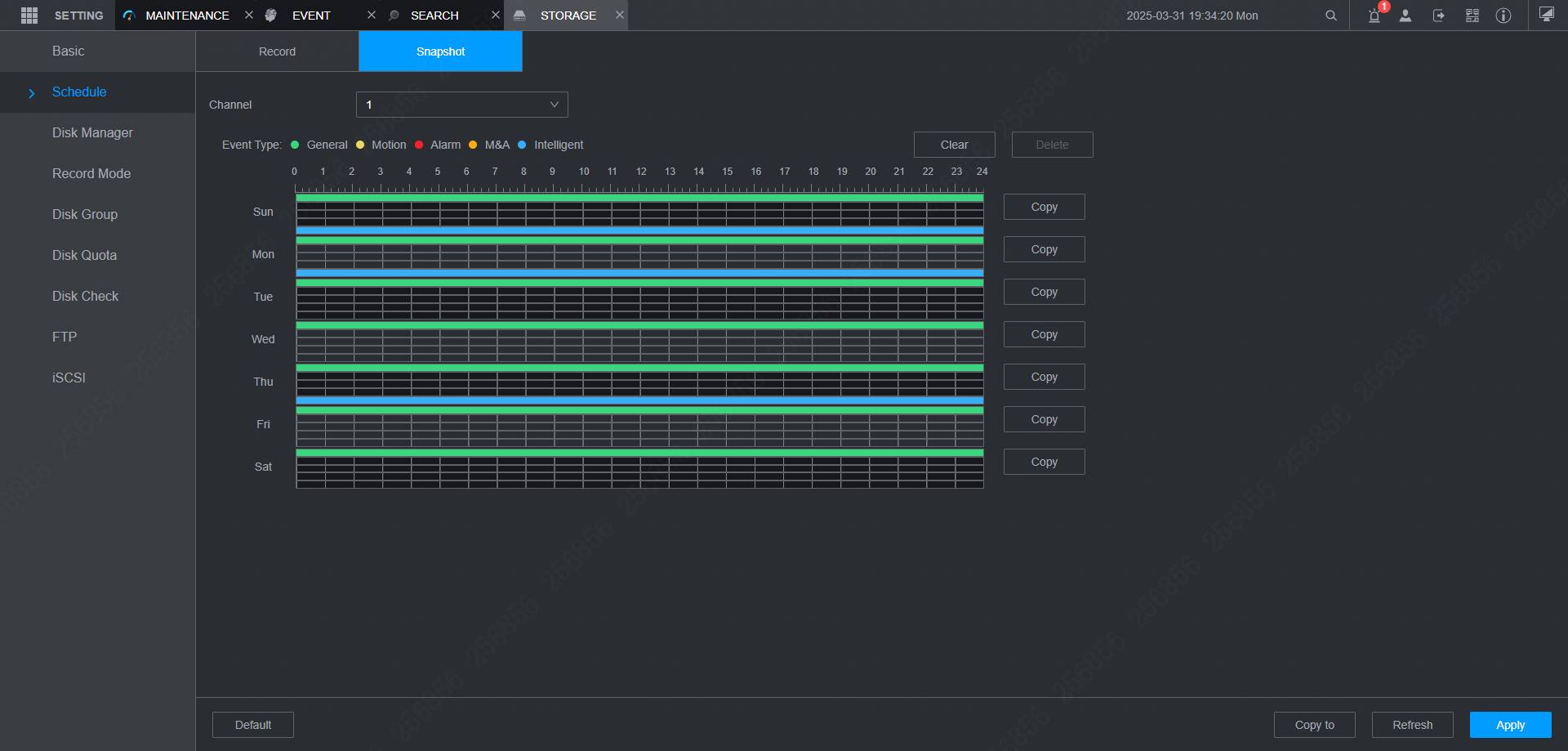

Storage → Snapshot → Schedule Settings

Disable Snapshot Storage If Not Required Continuously recording snapshots across multiple channels places significant load on the NVR and its hard drives. If snapshot storage is not needed for your use case, set the Snapshot Recording option to Off to free up resources.

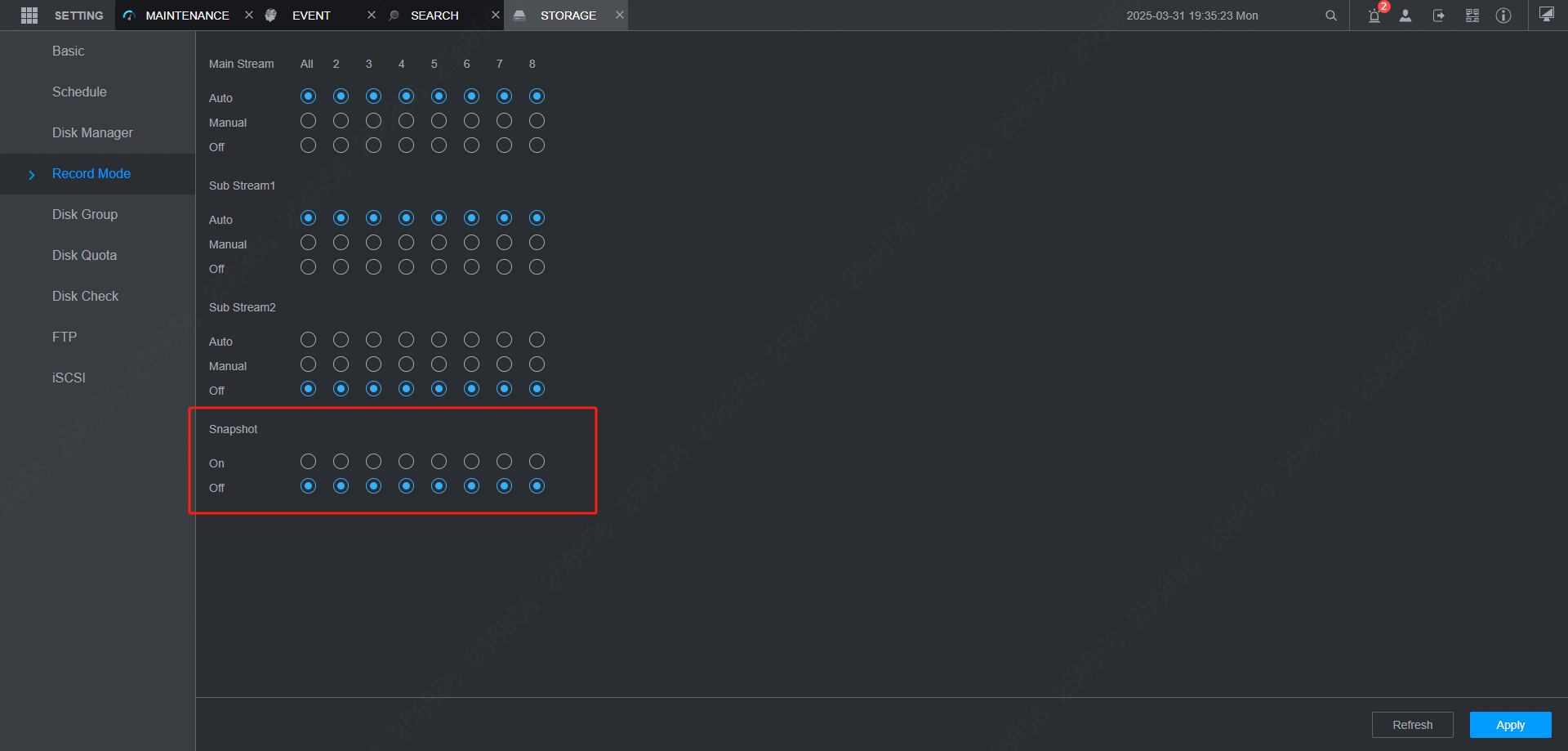

Storage → Record Mode → Snapshot Settings

1.2 Snapshot Quality

High-quality snapshots are rarely necessary for day-to-day monitoring and consume considerably more storage, memory, and transmission bandwidth. Unless specifically required, reduce the Snapshot Quality setting from 5 to 1 for both Schedule (General) and Event snapshots on all channels.

Quality Setting	Approximate File Size (8MP)
Quality 5 (default)	~4 MB per snapshot
Quality 1 (recommended)	~1 MB per snapshot

Note Snapshot quality settings configured on the NVR will override the equivalent settings on individual IPCs.

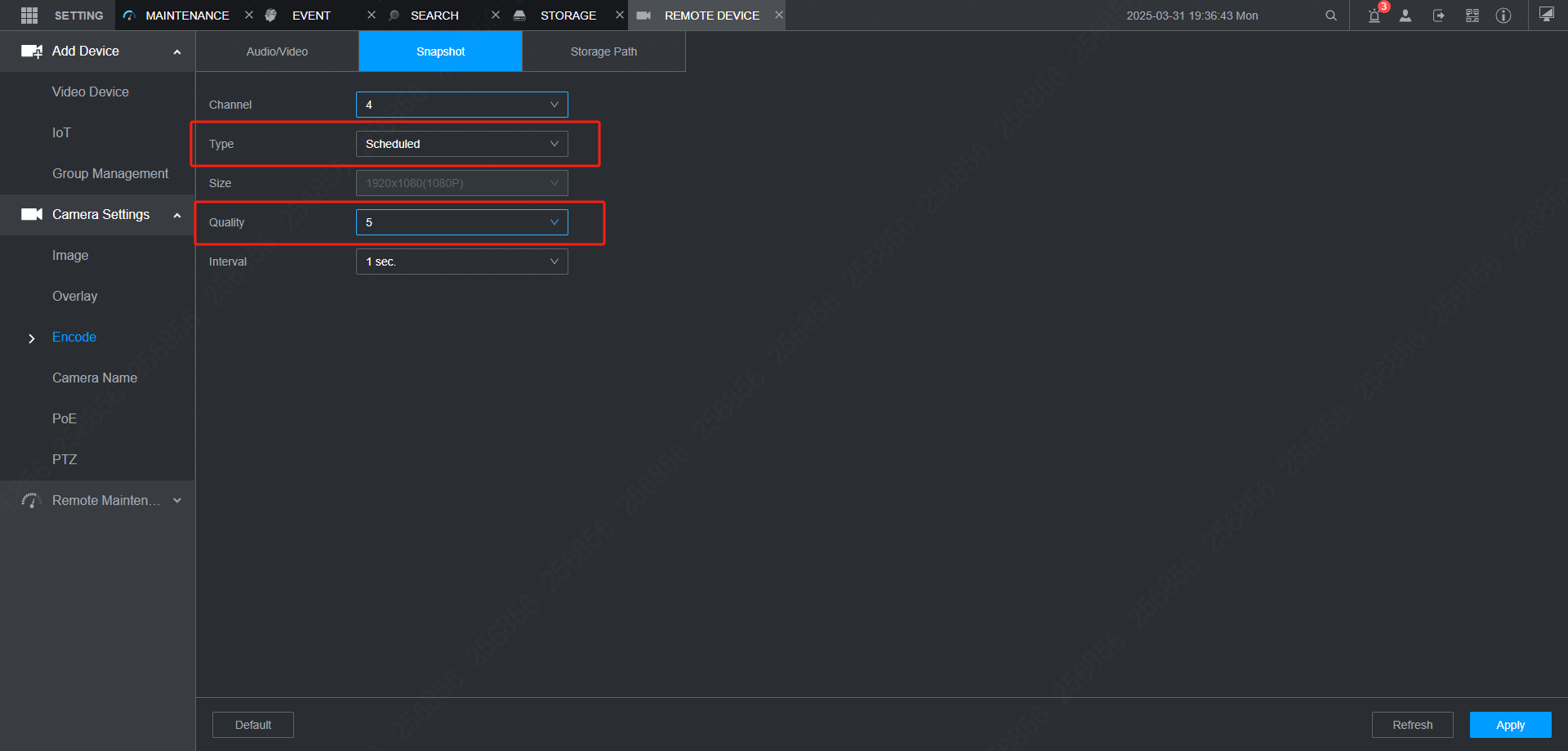

Setting Scheduled Snapshot Quality on NVR.

Setting Event Snapshot Quality on NVR.

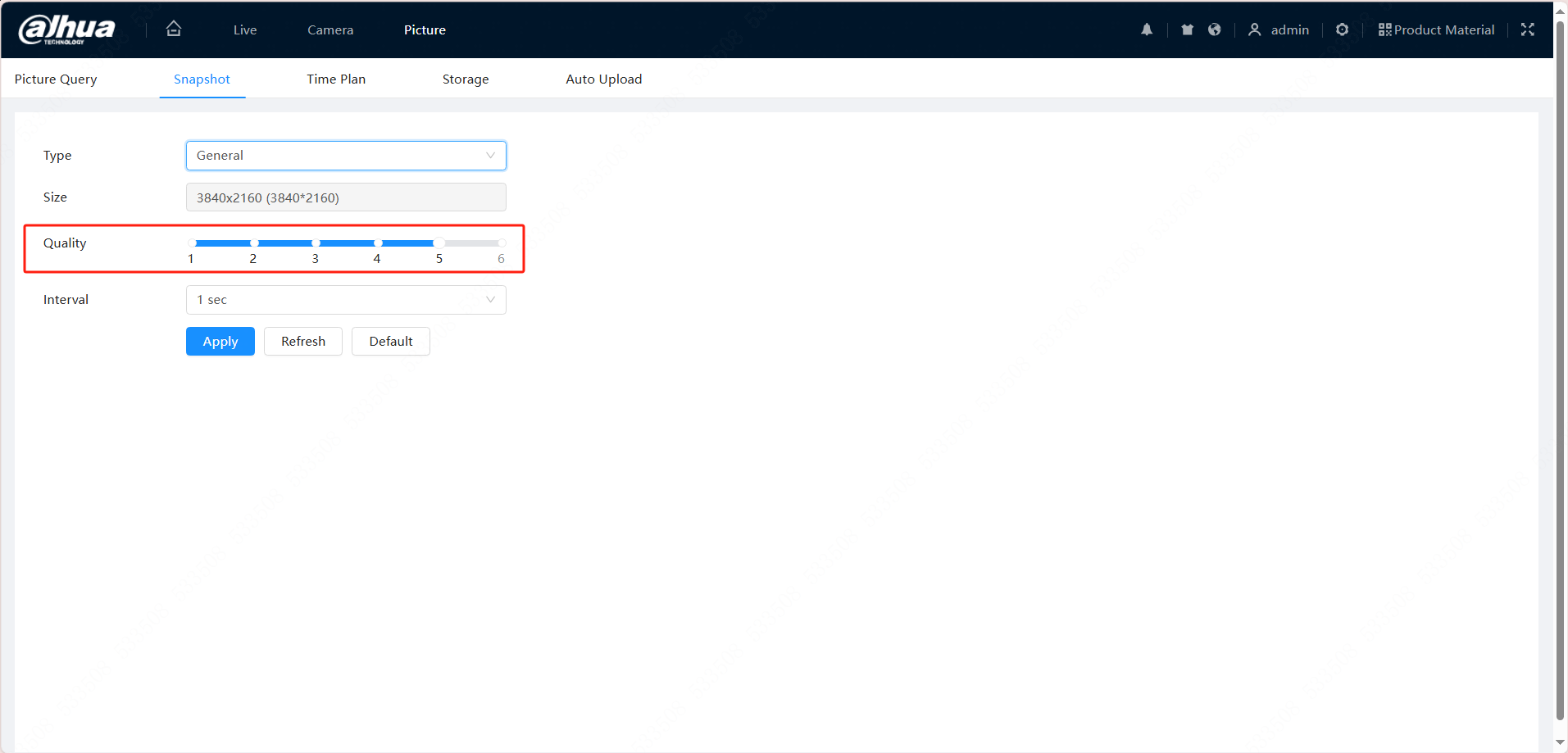

Setting General Snapshot Quality on IPC.

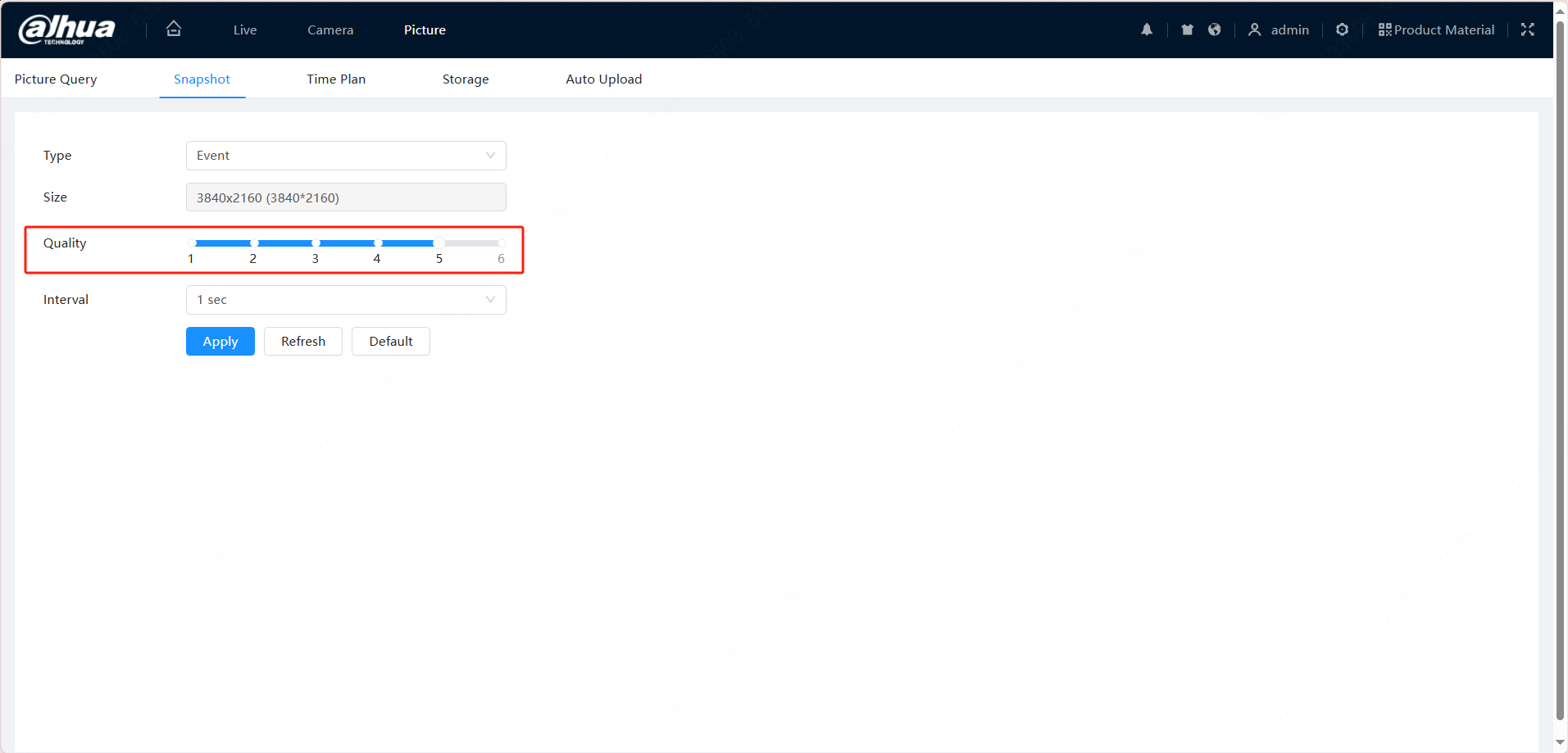

Setting Event Snapshot Quality on IPC.

2. Event Management

Generating hundreds or thousands of events per channel per day is counterproductive for most security monitoring purposes. Excessive events make it harder to identify genuine incidents and can slow down the NVR significantly.

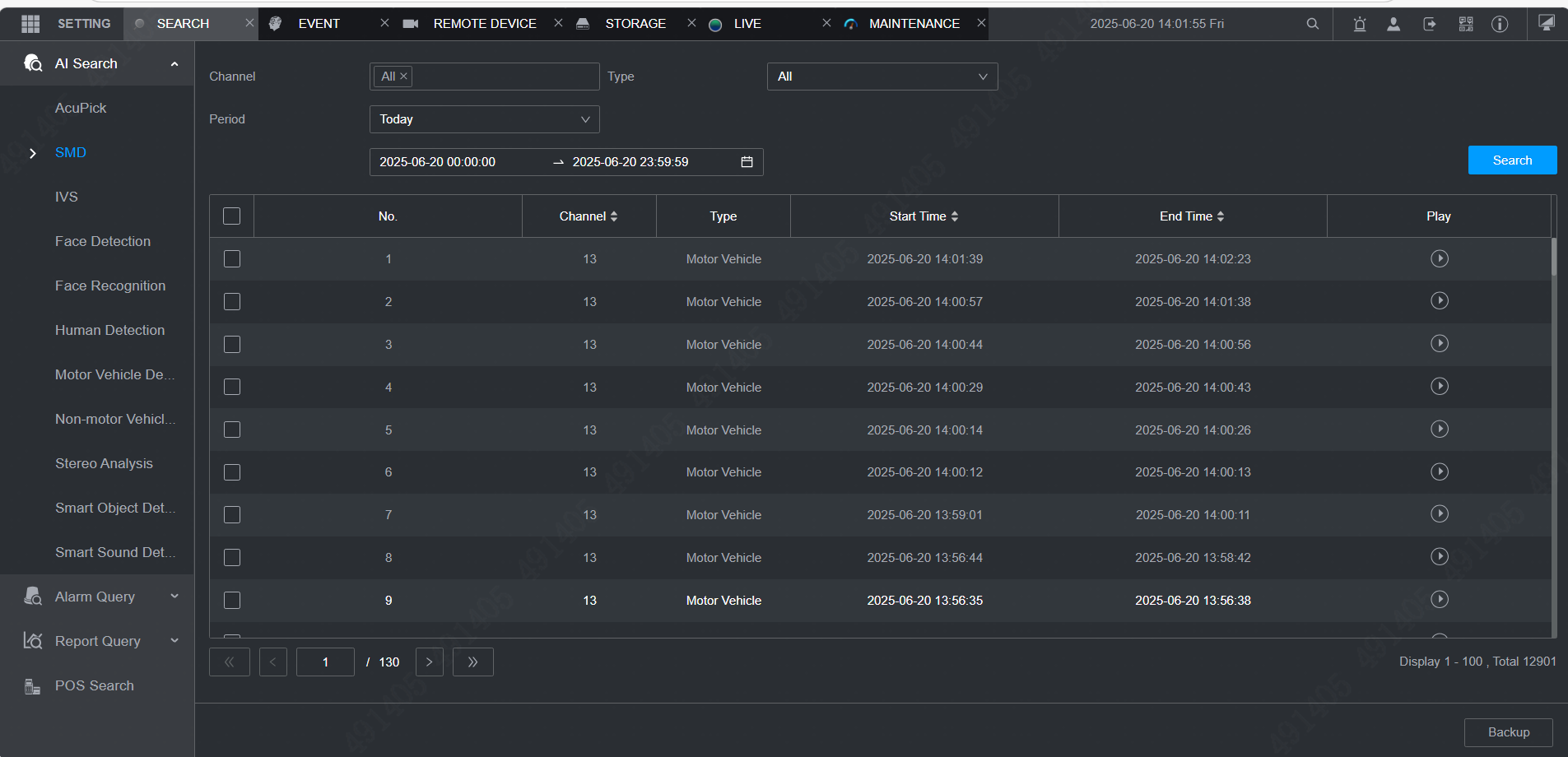

Example of thousands of SMD events in a day

Example of over 10,000 SMD events generated in a single day — this is not practical for security monitoring.

2.1 Disable Unnecessary Events

The quickest way to reduce event volume is to disable Motion Detection (MD) on channels where it is not needed. SMD is automatically disabled when MD is turned off.

To apply this efficiently across all channels: disable MD on Channel 1, click Save, use the Copy To function to apply the setting to all other channels, click Save again, and then reboot the NVR.

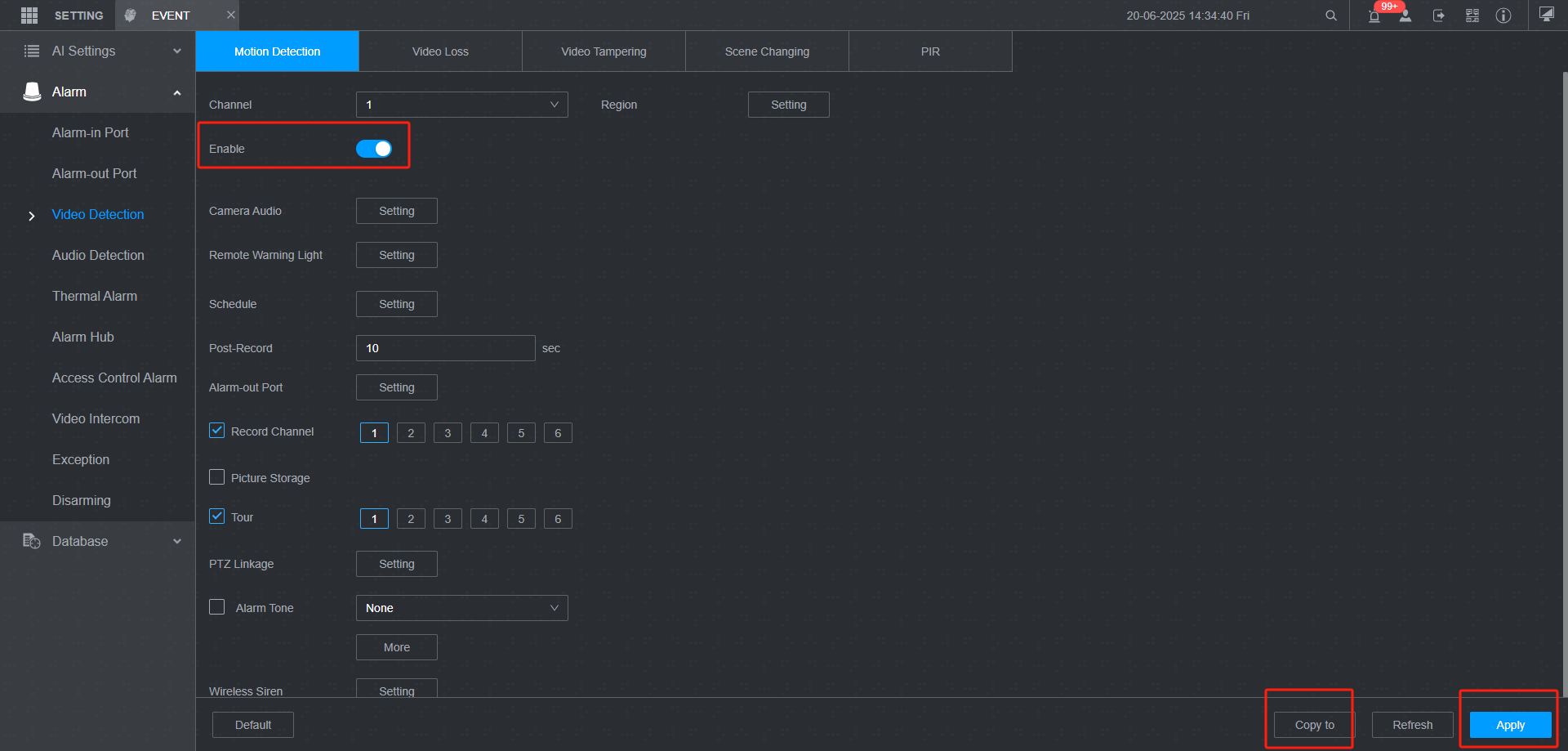

Turning off MD and using the Copy To feature

Disabling MD on one channel and using Copy To to apply across all channels.

Check Dependencies Before Disabling MD Some features — such as Smart Illumination — require SMD to be active. Confirm which features depend on MD or SMD before disabling them.

2.2 Schedule Events

If a detection rule does not need to run around the clock, configure a schedule so it is only active during the relevant hours. This reduces unnecessary event generation outside of monitored periods.

Note Event schedule settings applied from the NVR will override the equivalent settings on IPCs when operating under AI by Camera mode.

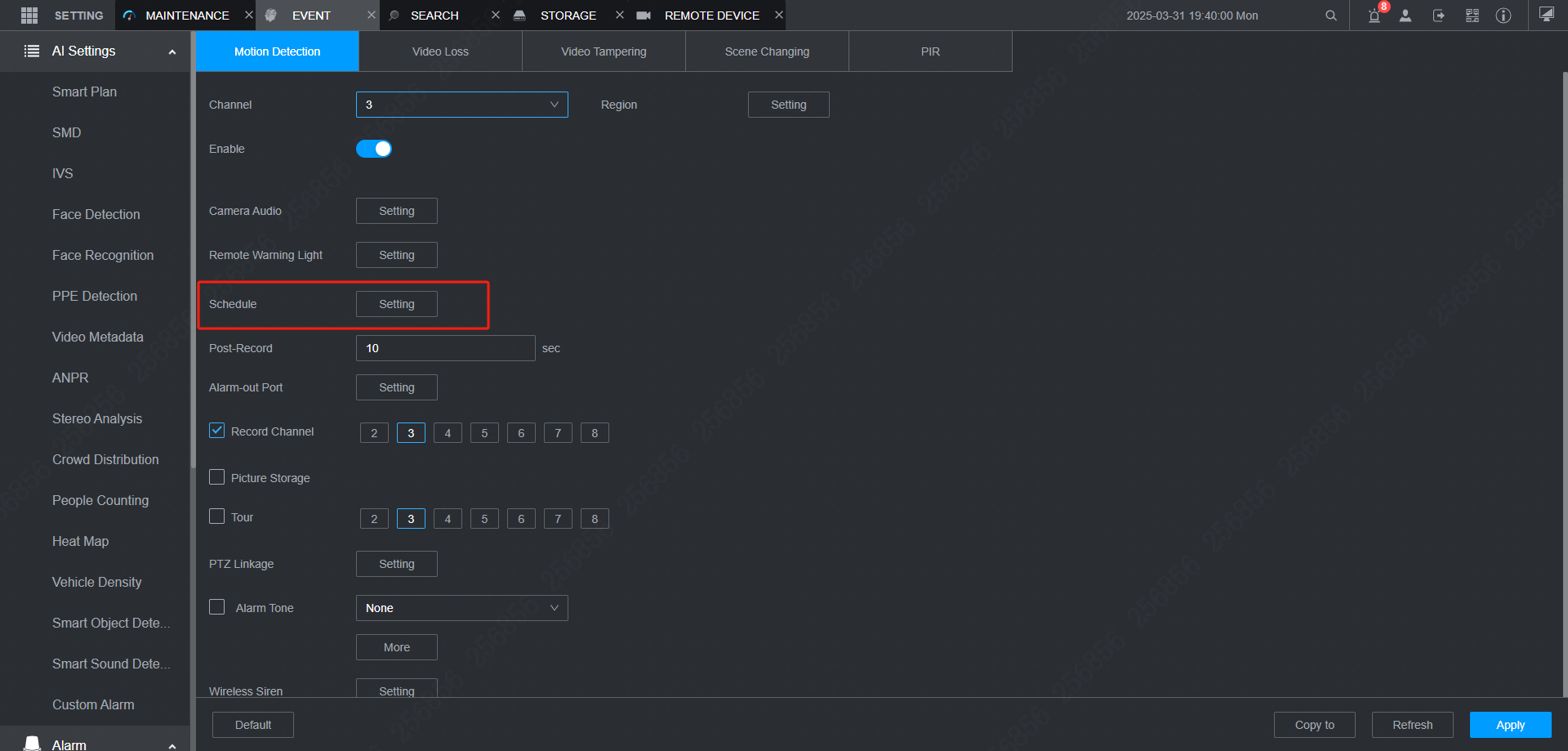

Setting an event schedule on the NVR.

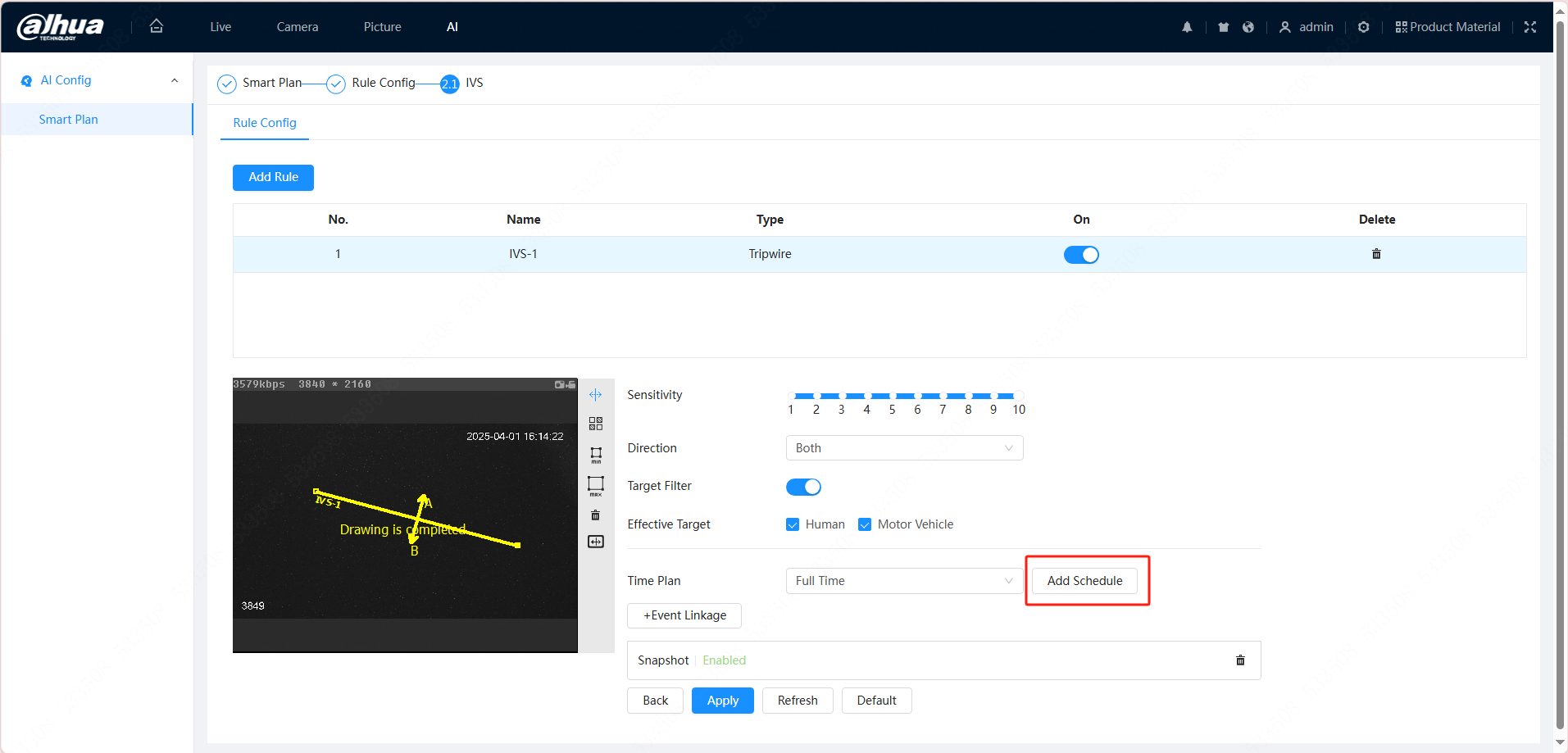

Setting an event schedule on the IPC.

3. Disarm Scheduling

Disarm — or Scheduled Disarm — provides a straightforward way to suppress alarm linkages during specific periods, such as business hours when activity is expected and alarms would be disruptive.

Disarm Does Not Suppress All Notifications by Default Event notifications will continue to fire unless the device is both disarmed and Event Notifications is set to Off. Both conditions must be met to fully suppress alerts.

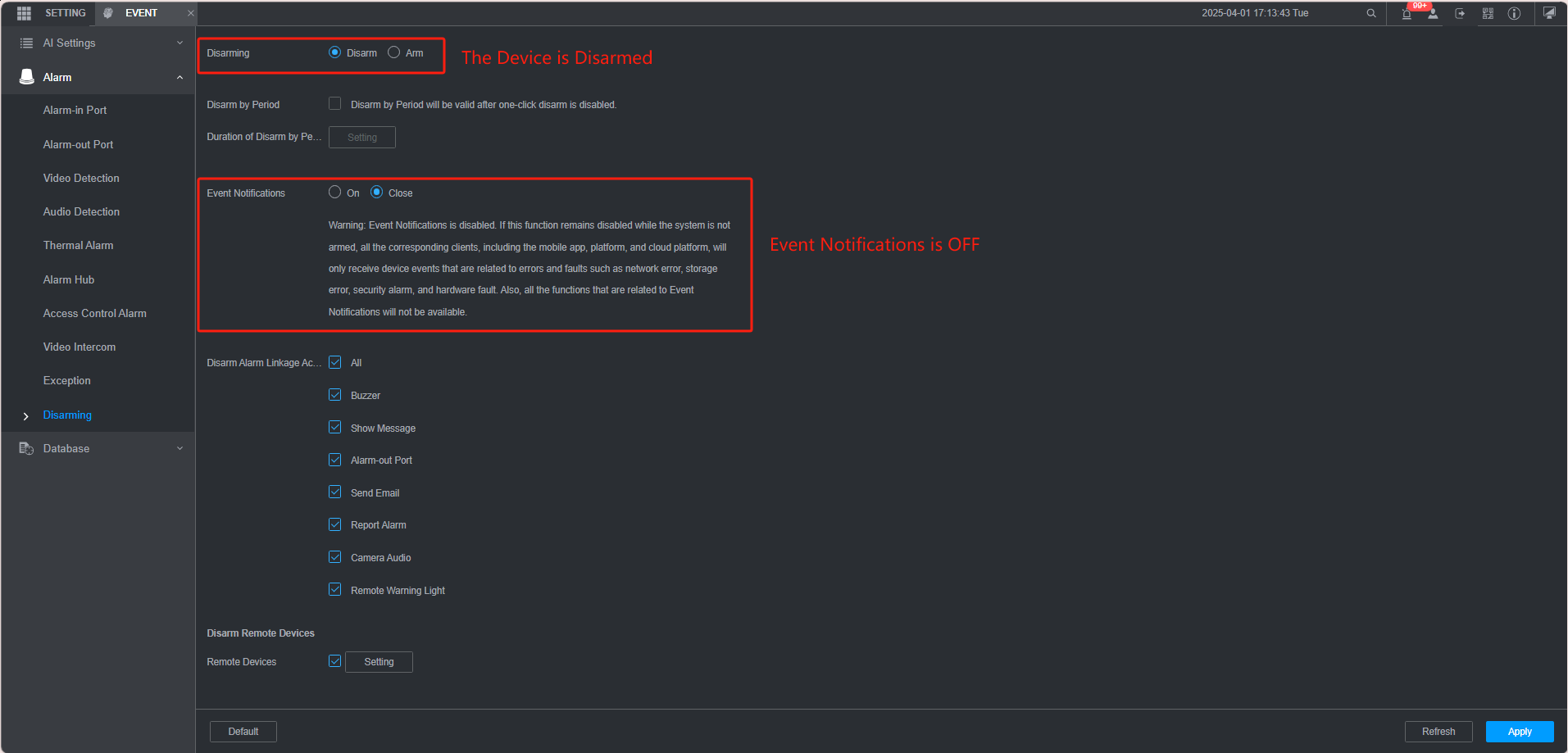

Disarm and Event Notifications Off on NVR and IPC

Disarm enabled and Event Notifications set to Off — on both NVR and IPC — to fully suppress alerts.

4. Auto-Maintenance

Devices operating under sustained heavy load benefit from scheduled maintenance routines. Configure the following on both cameras and recorders:

Auto-reboot Schedule a weekly automatic reboot. Avoid setting the same reboot time for all devices at a site to prevent simultaneous downtime across the network.
Auto-delete old files Configure the device to automatically delete files older than 30 days. This prevents storage from filling up in a way that could interrupt normal recording and operation.
